Choose Vantage® ThermalHEART™ thermally broken sliding doors for a perfect balance of energy-efficiency and style. It’s the best of both worlds!

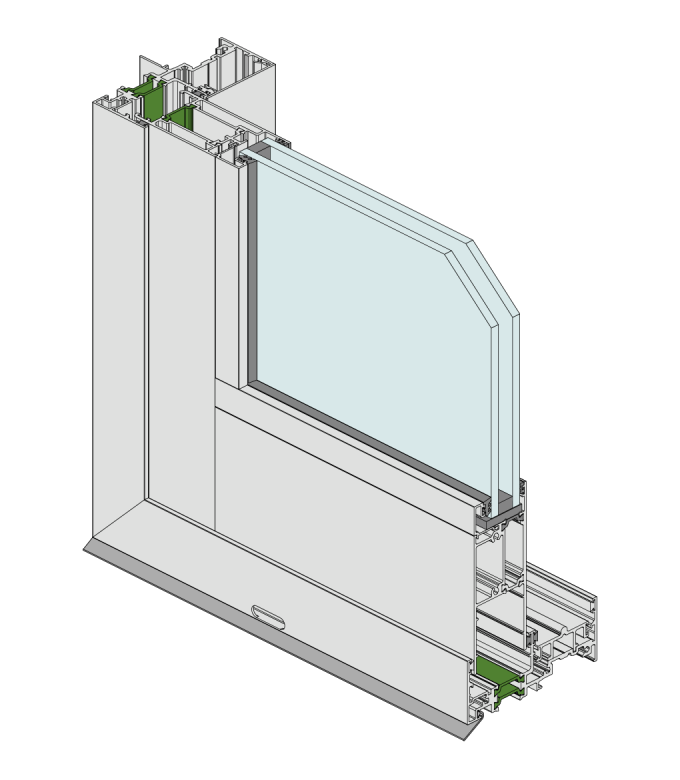

- Thermal insulation strip minimises the transfer of heat and cold.
- Big, bold frames span wide openings up to 12 metres wide and 3 metres high.
- Low Uw values deliver excellent insulation.
- Combined with double-glazing they’re up to 32% more energy efficient than traditional double-glazed sliding doors.
- Sliding panels run on heavy duty rollers for a lifetime of easy, smooth operation.
- Unused frame tracks are filled with snap-in fillers for a neat, tidy appearance.
- Sill can be recessed into a slab for a beautiful flush threshold.
| *Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions. | |
| Maximum Frame Height* | 3000mm |
| Maximum Panel Width* | 1995mm |
| Maximum Glass Thickness | ≤ 32mm |
| SHGC Range | 0.18 – 0.52 |
| Uw Range | 2.2 – 5.1 |
