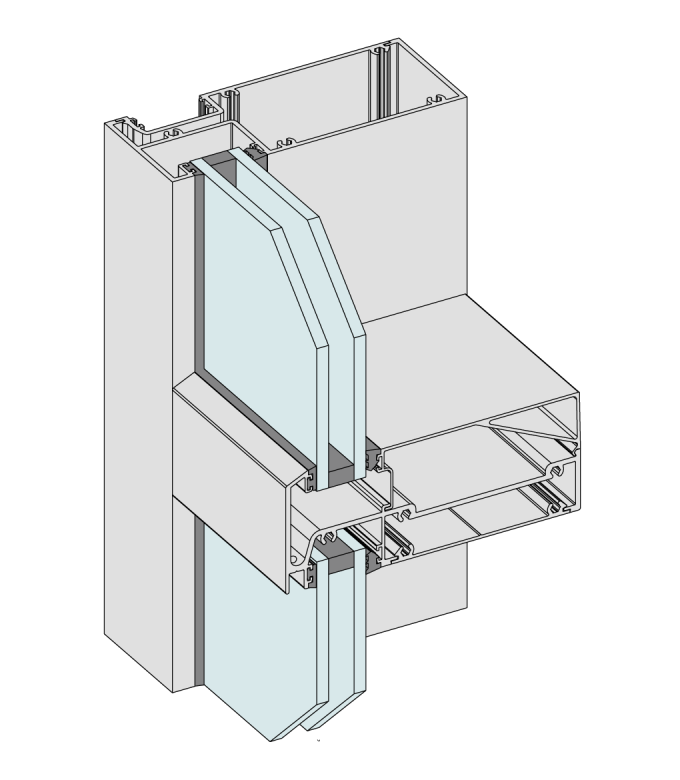

Double glazed FrontGLAZE™ framing system designed specifically to accept 24mm Insulating Glass Units (IGUs) with the required 12mm glass bite.
- High water resistance can be achieved. Has been successfully tested at 600Pa water resistance.
- The 150 x 60mm framing system has a variety of transom and mullion alternatives. This system will also accept many of the Series 606 FrontGLAZE™ frame accessories including doors, sub-frames and thresholds.
- Glazing pocket will accept co-extruded captive glazing wedges.
- Two mullion designs allow frames to be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing.
- Alternative structurally glazed mullion.
- Optional midrail will also accept 24mm IGUs.
- Transoms have built-in drip groove to encourage water to leave the face of the framing.
- Sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.
| *Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions. | |
| Maximum Frame Height* | Various |
| Maximum Panel Width* | Various |
| Maximum Glass Thickness | ≤ 28mm |
| SHGC Range | 0.21 – 0.7 |
| Uw Range | 2.5 – 3.7 |
